產品介紹

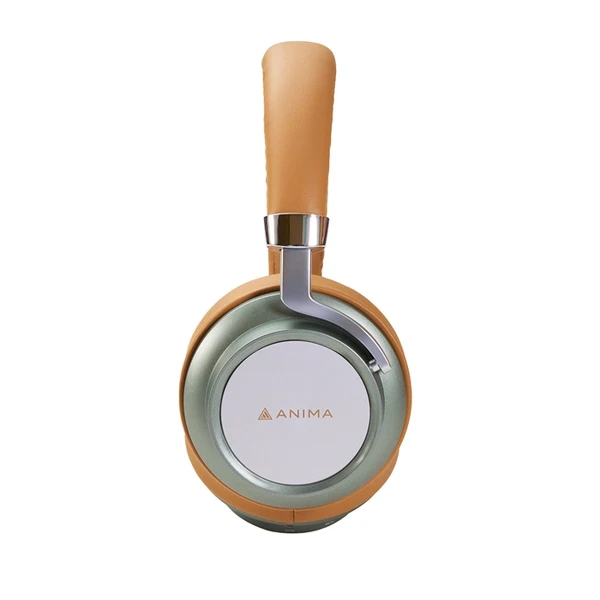

動漫元素融入日常配搭 – ANIMA ANW03 頭戴無線耳機

規格

單元	40mm「CoClear振膜」動圈單元
頻率響應	20Hz～40kHz
阻抗	32Ω
藍牙版本	5.4
藍牙協議	A2DP / AVRCP / HSP / HFP / SPP
支援藍牙編碼	SBC / AAC / aptX™ / aptX Adaptive™ / LC3 (LE Audio時)
連續播放時間	約37小時（※aptX連接時）
充電接口	USB Type-C
專用應用程式	ANIMA Studio（iOS 14.1 ／ Android 9.0 以上）
尺寸	W190×H155×D85mm
重量	約240g
附件	USB Type-C數據線、3.5mm立體聲線纜（1.2m）、耳墊（已安裝）、說明書、保證卡

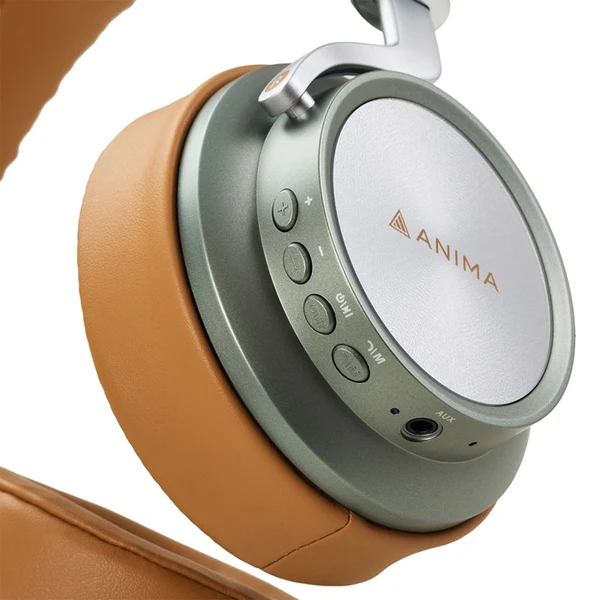

Button Operation

Basic operations

Power On	Press and hold the MF button for 3 seconds
Power off (manual)	Press and hold the MF button for 3 seconds
Power off (automatic)	When music has not been played for 5 minutes, or when the battery level falls below a certain level (*1)

*1 The power will not turn off automatically when connected via wired connection.

Music playback

Play/Stop	Press the MF button once
Skip forward	Press the MF button twice in quick succession
Go back	Press the MF button three times in succession
Volume (+)	Press the volume button (+) once briefly (※2)
volume(-)	Press the volume button (-) once briefly (※2)

*2 Volume can also be controlled by pressing and holding the button.

Voice Assistant

on	Tap the call button three times quickly (※3)
off	Tap the call button three times quickly (※3)

*3 Voice assistant cannot be used during a call.

Calls

Answering an incoming call	Press the call button once
Call Rejection	Press and hold the call button for 1 second
Call device switching	During a call, press the call button twice
End call	During a call, press and hold the call button for 1 second or press the call button 3 times quickly

others

Initialization	With the power on, press and hold the call button and volume button (+) simultaneously for 3 seconds (※1, ※4)
Pairing Mode	With the power on, press and hold the call button for 3 seconds (※5)

*1 The power will not turn off automatically when connected via wired connection.

*4 When LED1 has finished flashing purple for 3 seconds, the process is complete. The power will turn off after completion.

*5 If the device is not paired or connected when the power is turned on, it will automatically enter pairing mode after 3 seconds.

How to pair

■ Method 1 (When factory settings and initialization (※1) have been performed)

1. Prepare a fully charged product.

2. Press and hold the “MF button” for 3 seconds to turn the power on.

3. When LED1 flashes red and blue alternately, open the settings on your device and select this product from the Bluetooth settings.

4. When the connection is complete, LED1 will turn off. (You will hear an announcement that the connection is complete. )

■ Method 2 (Manual pairing)

1. Prepare a fully charged product.

2. Press and hold the “MF button” for 3 seconds to turn the power on.

3. Press and hold the “Call button” for 3 seconds.

4. When LED1 flashes red and blue alternately, open the settings on your device and select this product from the Bluetooth settings.

5. When the connection is complete, LED1 will turn off. (You will hear an announcement that the connection is complete.)

Method 3

If the following steps 1 to 3 are met and there is no wired connection, the device will enter automatic pairing mode after 3 seconds.

1. When you disconnect from the device

2. When you cancel your registration

3. When the paired device cannot be found after powering on

■ Cancel pairing mode

When in pairing mode, press and hold the “Call Button” for 3 seconds and LED1 will light up purple.

After 3 seconds, LED1 will turn off and pairing mode will be canceled.

*1 If you want to connect to a previous device after initializing the device, you will need to erase the ANW03 registration and perform pairing again.
